Description

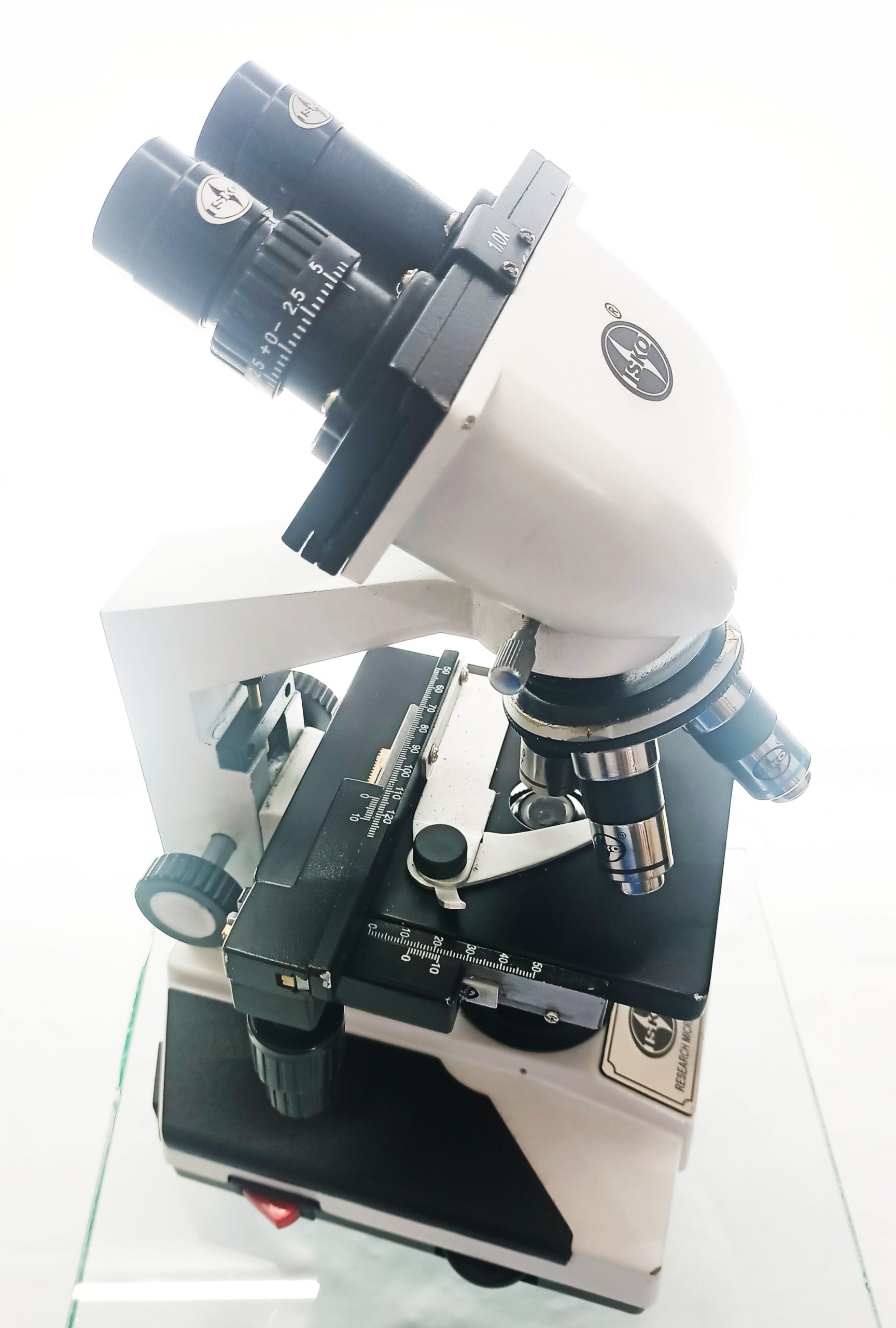

BINOCULAR MICROSCOPE
TECHNICAL SPECIFICATIONS
1. Body-Inter changeable, inclined Binocular body, 360º rotatable head
2. Eyepieces-Highest quality 10 X wide angle anti fungus field eyepiece.
3. Objectives-Parfocal, antifungus coated 4x, 10x, 40x and 100x (oil immersion)
with plan achromatic correction
4. Optical system-Infinity corrected
5. Stage –Horizontal mechanical stage preferably 100 x 140 mm with fine vernier
graduations designed with convenient coaxial adjustment for slide manipulation
preferably through 30 x 70 mm
6. Sub stage-Abbe condenser focusable, continuously variable iris diaphragm
7. Illuminator-Built-in LED light source with white light.
8. Finish-A durable textured acid resistant finish.
9. Other Features
i. Should provide with wooden storage box, dust cover, immersion oil.
ii. Electrical safety certification
iii. Should work with input 200 to 240Vac 50 Hz supply.
